MCP Apps

MCP Apps are based on the MCP ext-apps specification — an open standard for rendering interactive UI views inside AI conversations.

MCP Apps are the portable baseline across hosts (e.g. Claude, Goose, VSCode, and ChatGPT compatibility mode). frac implements the protocol via the McpAppAdaptor so you use the same hooks regardless of runtime.

View Rendering Flow

Here’s what happens when an MCP Apps client renders a view:

User asks the AI to perform an action (e.g., “Show me flight options to Paris”)
The client calls your MCP tool (e.g., search_flights)
Your tool returns a result with data and a reference to a UI resource
The client fetches the resource (your compiled React component) and renders it in an iframe
The view communicates with the host via the MCP protocol and is hydrated with your tool’s structuredContent and _meta properties

The view–host connection looks like this:

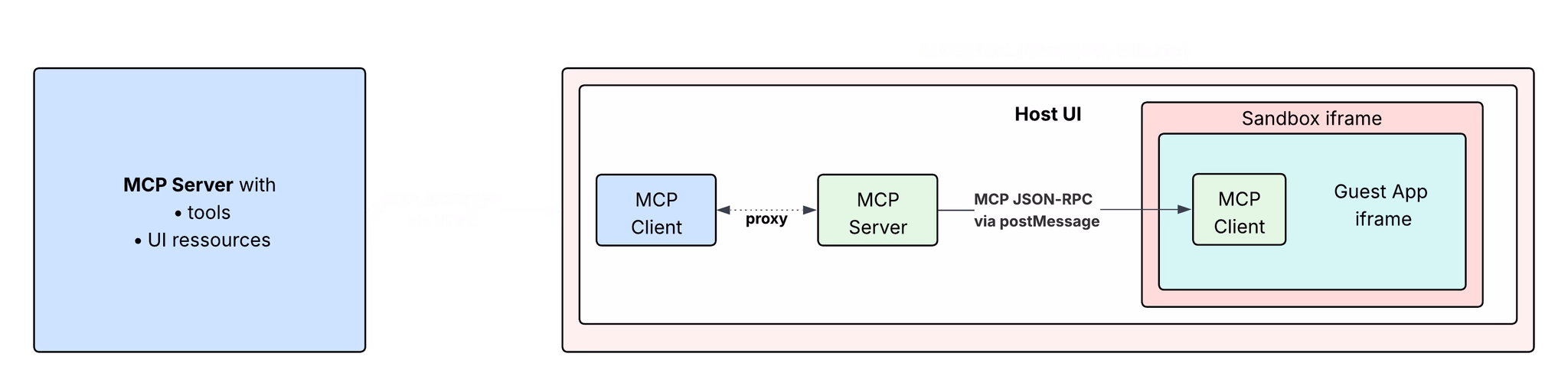

MCP Apps architecture: MCP Server, MCP Host (ChatGPT, Claude), Host UI with Sandbox and Guest App iframe

The Host UI in this diagram designates the MCP Client (Claude, Goose, VSCode, etc.), and the Guest App is your App running in an iframe.

The MCP ext-apps protocol

Views run inside an iframe and talk to the host via the same MCP protocol used by your server. The ext-apps spec defines guest-to-host requests and host-to-guest notifications for the view:

Guest-to-host requests

Method	Description
`ui/initialize`	Handshake to establish connection
`ui/open-link`	Open external URLs
`ui/message`	Send follow-up messages to the conversation
`ui/request-display-mode`	Request display mode change
`ui/update-model-context`	Update view state for the model
`tools/call`	Invoke MCP tools

Host-to-guest notifications

Notification	Description
`ui/notifications/host-context-changed`	Theme, locale, display mode, viewport, or other host context updated
`ui/notifications/tool-input`	Tool arguments provided
`ui/notifications/tool-result`	Tool execution completed
`ui/notifications/tool-cancelled`	Tool call was cancelled
`ui/notifications/tool-input-partial`	Streaming partial tool arguments (e.g. while the model is still sending)

frac Hook Mapping

frac wraps the MCP ext-apps protocol with the same React hooks as the Apps SDK. The McpAppAdaptor translates hook usage into the protocol under the hood:

Protocol	frac Hook	Purpose
`ui/notifications/tool-input`, `tool-result`, `metadata`	`useToolInfo()`	Access tool input, output, and `_meta`
`ui/update-model-context`	`useViewState()`, `data-llm`	Persistent view state / model context
`tools/call`	`useCallTool()`	Make additional tool calls
`ui/message`	`useSendFollowUpMessage()`	Send follow-up messages
`ui/open-link`	`useOpenExternal()`	Open external URLs
`ui/request-display-mode`	`useDisplayMode()`	Access/change display mode
`ui/notifications/host-context-changed` (theme, maxHeight, safeArea)	`useLayout()`	Theme, max height, safe area insets
`ui/notifications/host-context-changed` (locale, userAgent)	`useUser()`	Locale and device/capabilities
Modal (polyfilled)	`useRequestModal()`	Request modal display (renders in-iframe)
`ui/notifications/size-changed`	`useRequestSize()`	Manually report view size (ext-apps `autoResize` handles this by default)

MCP Apps methods not yet supported in frac

The following MCP ext-apps protocol methods are not yet wrapped by frac hooks:

Protocol Method	Purpose
`ui/notifications/tool-input-partial`	Streaming partial tool arguments (e.g. while the model is still sending)
`ui/notifications/tool-cancelled`	Tool call was cancelled

You can access tool-input-partial and tool-cancelled directly via useMcpAppContext when running in MCP Apps clients, if needed. Support may be added in a future release.

MCP Apps limitations

Not all frac features exist in the ext-apps spec. When using frac in MCP Apps clients, the following features are either not supported or polyfilled:

Feature	Apps SDK	MCP Apps
useFiles, useSetOpenInAppUrl	✅	❌ Not supported
useRequestModal	Portaled to host	⚠️ Polyfilled (renders in-iframe)
useViewState, data-llm	Persisted by host	⚠️ Polyfilled (state doesn’t persist across view renders)

Graceful degradation: Unsupported features throw; polyfilled ones work with limitations. See the compatibility matrix for details.

Testing MCP Apps

Please see the Test Your App guide for more information.

Apps SDK (ChatGPT) - The ChatGPT-specific runtime
Write Once, Run Everywhere - How frac abstracts both runtimes
API Reference - Full compatibility matrix
useMcpAppContext - Low-level MCP context hook
